Dedoc usage tutorial

Suppose you’ve already have dedoc library installed. Otherwise Dedoc installation may be useful.

You can use dedoc as an application, see Using dedoc via API for more information.

If you have installed dedoc using pip, you can use different parts of dedoc workflow separately.

Using converters

Assume we have a file example.odt and we need to convert it to example.docx using dedoc library. For this purpose one can use dedoc.converters.DocxConverter class:

from dedoc.converters import DocxConverter

converter = DocxConverter(config={})

Method dedoc.converters.DocxConverter.can_convert() allows to check if the converter can convert the given file:

import os
import mimetypes

file_dir, file_name = "test_dir", "example.odt"
file_path = os.path.join(file_dir, file_name)

name_wo_extension, file_extension = os.path.splitext(file_name)
file_mime = mimetypes.guess_type(file_path)[0]

converter.can_convert(file_extension, file_mime)  # True

Since we have checked if the converter is able to convert the file, we can convert it using dedoc.converters.DocxConverter.do_convert() method:

converter.do_convert(file_dir, name_wo_extension, file_extension)  # 'example.docx'

To get the information about available converters, their methods and parameters see dedoc.converters. The supported document formats that can be converted to another formats (which can be parsed by readers) are enlisted in the table Supported documents formats and the reader’s output.

Using readers

To get the information about available readers, their methods and parameters see dedoc.readers. The supported document formats that can be handled by readers are enlisted in the table Supported documents formats and the reader’s output.

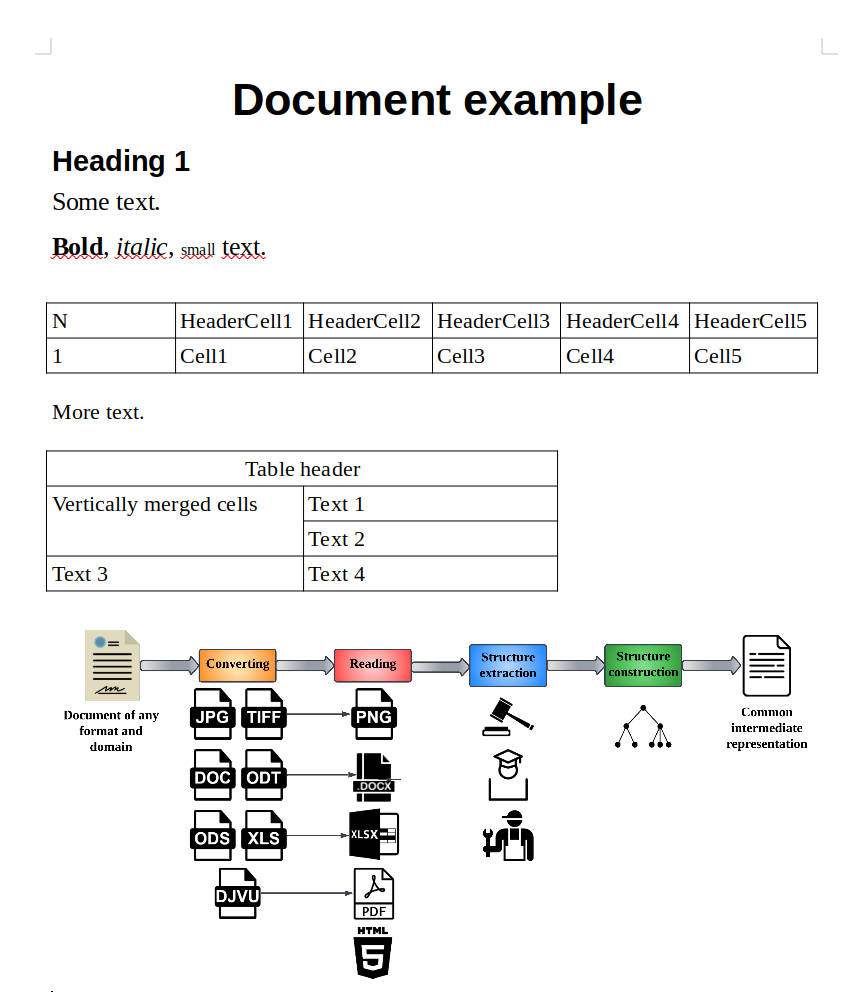

Let’s consider an example of using readers. Assume we need to parse file example.docx, which looks like follows:

../_images/docx_example.png — document example

As we see, the file contains text of different styles, two tables and an attached image.

To read the contents of this file in the intermediate representation (see dedoc.data_structures.UnstructuredDocument) one can use dedoc.converters.DocxReader class:

from dedoc.readers import DocxReader

reader = DocxReader(config={})

Method dedoc.readers.DocxReader.can_read() allows to check if the reader can parse the given file:

import os
import mimetypes

file_dir, file_name = "test_dir", "example.docx"
file_path = os.path.join(file_dir, file_name)

name_wo_extension, file_extension = os.path.splitext(file_name)
file_mime = mimetypes.guess_type(file_path)[0]
reader.can_read(file_path, file_mime, file_extension)  # True

Since we have checked if the reader is able to read the file, we can get its content (dedoc.data_structures.UnstructuredDocument) using dedoc.readers.DocxReader.read() method:

reader.read(file_path, parameters={"with_attachments": "true"})  # <dedoc.data_structures.UnstructuredDocument>

Let’s save the document in the variable and look at it in more detail:

document = reader.read(file_path, parameters={"with_attachments": "true"})
print(list(vars(document)))  # ['tables', 'lines', 'attachments', 'warnings', 'metadata']

As we see, the document object has the following attributes: lines, tables, attachments, metadata and warnings. Document metadata is the empty dict on this stage, because it should be filled by one of the metadata extractors (see dedoc.metadata_extractors and Using metadata extractors). Document warnings – the list of strings with some warnings that occurred while document parsing. So the most useful information is stored in lines, tables and attachments.

Document lines

The attribute lines in the dedoc.data_structures.UnstructuredDocument is a list of dedoc.data_structures.LineWithMeta.

We can get the text of any line:

print(document.lines[0].line)  # Document example

Also some of the readers can detect line types based of their styles, e.g.:

print(document.lines[0].metadata.tag_hierarchy_level.line_type)  # header

Formatting of each line is stored in the annotations attribute:

print(document.lines[0].annotations[0])  # Indentation(0:16, 0)
print(document.lines[0].annotations[3])  # Style(0:16, Title)

print(document.lines[3].annotations[4])  # Size(0:14, 16.0)
print(document.lines[3].annotations[5])  # Size(19:26, 16.0)
print(document.lines[3].annotations[6])  # Bold(0:4, True)
print(document.lines[3].annotations[7])  # Italic(6:12, True)
print(document.lines[3].annotations[8])  # Size(14:19, 10.0)

See dedoc.data_structures to get more information about main classes forming a document line.

Document tables

The attribute tables in the dedoc.data_structures.UnstructuredDocument is a list of dedoc.data_structures.Table.

Each table is represented as a list of table rows, each row is a list of strings with cells text.

print(document.tables[0].cells[0][0])  # N
print(document.tables[0].cells[1][3])  # Cell3
print(document.tables[1].cells[3])  # ['Text 3', 'Text 4']

It also has metadata, containing table’s unique identifier, cells properties (information about rowspan and colspan).

print(document.tables[0].metadata.uid)  # f2f08354fc2dbcb5ded8885479f498a6
print(document.tables[0].metadata.cell_properties[0][0].colspan)  # 1
print(document.tables[0].metadata.cell_properties[0][0].rowspan)  # 1
print(document.tables[0].metadata.cell_properties[0][0].invisible)  # False

All tables have rectangular form, so if the cells are merged, in the intermediate representation they aren’t and have the same contents. Use cells properties for getting information about merged cells.

print(document.tables[1].metadata.cell_properties[0][0].invisible)  # False
print(document.tables[1].metadata.cell_properties[0][1].invisible)  # True

print(document.tables[1].metadata.cell_properties[0][0].colspan)  # 2
print(document.tables[1].metadata.cell_properties[0][1].colspan)  # 1

print(document.tables[1].cells[0][0])  # Table header
print(document.tables[1].cells[0][1])  # Table header

As we see in the document example, the second table has some merged cells, e.g. in the first row. In the intermediate representation this row consists of two cells, and the second cell contains the same text as the first one, but it’s invisible. Information about the fact that these cells are merged is stored in the colspan of the first cell.

The unique identifier links the table with the previous non-empty line in the document.

print(document.tables[0].metadata.uid)  # f2f08354fc2dbcb5ded8885479f498a6
print(document.lines[3].line)  # Bold, italic, small text.
print(document.lines[3].annotations[-1])  # Table(0:26, f2f08354fc2dbcb5ded8885479f498a6)

In the current example (document example), the line with the text “Bold, italic, small text.” is the first non-empty line before the first table, so the table uid is linked to this line using dedoc.data_structures.TableAnnotation.

Document attachments

The attribute attachments in the dedoc.data_structures.UnstructuredDocument is a list of dedoc.data_structures.AttachedFile.

In the document example there is an image attached to the file:

print(document.attachments[0].uid)  # attach_6de4dc06-0b75-11ee-a68a-acde48001122
print(document.attachments[0].original_name)  # image1.png
print(document.attachments[0].tmp_file_path)  # test_dir/1686830947_714.png
print(document.attachments[0].need_content_analysis)  # False

The tmp_file_path contains the path to the image saved on disk, the image is saved in the same directory as the parent docx file.

The unique identifier of the attachent links it with the previous non-empty line in the document. In our document example it is a line with text “More text.”.

print(document.attachments[0].uid)  # attach_6de4dc06-0b75-11ee-a68a-acde48001122
print(document.lines[5].line)  # More text.
print(document.lines[5].annotations[-2])  # Attachment(0:10, attach_6de4dc06-0b75-11ee-a68a-acde48001122)

The annotation uid is linked to the line using dedoc.data_structures.AttachAnnotation.

Using metadata extractors

Continue the example from the previous section.

The reader returned the intermediate representation of the document – dedoc.data_structures.UnstructuredDocument. If we need to get some additional information about the file e.g. document subject or author, we can add some metadata using dedoc.metadata_extractors.DocxMetadataExtractor.

from dedoc.metadata_extractors import DocxMetadataExtractor

metadata_extractor = DocxMetadataExtractor()

Method dedoc.metadata_extractors.DocxMetadataExtractor.can_extract() allows to check if the metadata extractor can extract metadata from the given file:

metadata_extractor.can_extract(document, file_dir, file_name, file_name, file_name)  # True

To extract metadata, one can add them to the document using dedoc.metadata_extractors.DocxMetadataExtractor.add_metadata() method.

document = metadata_extractor.add_metadata(document, file_dir, file_name, file_name, file_name)
print(document.metadata)  # {'file_name': 'example.docx', 'file_type': 'application/vnd.openxmlformats-officedocument.wordprocessingml.document', 'size': 373795, 'access_time': 1686825619, 'created_time': 1686825617, 'modified_time': 1686823541, 'other_fields': {'document_subject': '', 'keywords': '', 'category': '', 'comments': '', 'author': '', 'last_modified_by': '', 'created_date': 1568725611, 'modified_date': 1686752726, 'last_printed_date': None}}

As we see, the attribute metadata has been filled with some metadata fields. The list of common fields for any metadata extractor along with the specific fields for different document formats are enlisted in dedoc.metadata_extractors.

Using attachments extractors

In the section Using readers we already got the attachments of the file along with its other contents. If there is a need to extract attachments without reading the whole content of the document, one can use dedoc.attachments_extractors.

For example, in the document example we can use dedoc.attachments_extractors.DocxAttachmentsExtractor.

from dedoc.attachments_extractors import DocxAttachmentsExtractor

attachments_extractor = DocxAttachmentsExtractor()

Method dedoc.attachments_extractors.DocxAttachmentsExtractor.can_extract() allows to check if the attachments extractor can extract attachments from the given file:

attachments_extractor.can_extract(file_extension, file_mime)  # True

Since we have checked if the extractor can extract attachments from the file, we can extract them it using dedoc.attachments_extractors.DocxAttachmentsExtractor.get_attachments() method:

attachments = attachments_extractor.get_attachments(file_dir, file_name, {})
print(attachments[0])  # <dedoc.data_structures.AttachedFile>

As we see, attachment extractors return the same list of dedoc.data_structures.AttachedFile, as in the attribute attachments of the dedoc.data_structures.UnstructuredDocument, that we can get via readers (see Using readers).

See dedoc.attachments_extractors to get more information about available extractors, their methods and parameters.

Using structure extractors

After sections Using readers and Using metadata extractors we got an intermediate representation of the document content and its metadata. The next step is to extract document structure, i.e. to find the dedoc.data_structures.HierarchyLevel for each document line. This class contains information about the type and the level of the line (or its importance in the document).

Let’s extract the default structure based on the document styles:

from dedoc.structure_extractors import DefaultStructureExtractor

structure_extractor = DefaultStructureExtractor()
print(document.lines[0].metadata.hierarchy_level)  # None
document = structure_extractor.extract_structure(document, {})
print(document.lines[0].metadata.hierarchy_level)  # HierarchyLevel(level_1=1, level_2=1, can_be_multiline=False, line_type=header)

As we see, the hierarchy_level has been filled.

See Default document structure type for more details about the default document structure. Use dedoc.structure_extractors to get the information about available structure extractors, their methods and parameters.

Using structure constructors

After we got the document content with hierarchy levels of each line (see Using readers, Using metadata extractors and Using structure extractors), it’s possible to make the result class dedoc.data_structures.ParsedDocument.

Let’s construct the tree structure of the document:

from dedoc.structure_constructors import TreeConstructor

constructor = TreeConstructor()
parsed_document = constructor.structure_document(document)
print(parsed_document)  # <dedoc.data_structures.ParsedDocument>
print(list(vars(parsed_document)))  # ['metadata', 'content', 'attachments', 'version', 'warnings']

As we see, parsed document has similar attributes as dedoc.data_structures.UnstructuredDocument. The main difference is in the content attribute, that contains hierarchical document structure and tables.

print(list(vars(parsed_document.content)))  # ['tables', 'structure', 'warnings']
print(list(vars(parsed_document.content.structure)))  # ['node_id', 'text', 'annotations', 'metadata', 'subparagraphs', 'parent']
print(parsed_document.content.structure.subparagraphs[0].text)  # Document example

To get more information about dedoc.data_structures.ParsedDocument, dedoc.data_structures.DocumentContent and other classes, that form the output format, see dedoc.data_structures.

See dedoc.structure_constructors for the description of available structure constructors and structure types. The description of API output JSON format also may be useful.

Run the whole pipeline

For running the whole pipeline with all readers, metadata and structure extractors, structure constructors, one may use manager class (see Dedoc pipeline for more details).

from dedoc import DedocManager

manager = DedocManager()
result = manager.parse(file_path=file_path, parameters={})

print(result)  # <dedoc.data_structures.ParsedDocument>
print(result.to_dict())  # OrderedDict([('version', ''), ('warnings', []), ('content', OrderedDict([('structure', OrderedDict([('node_id', '0'), ('text', ''), ('annotations', []), ('metadata', OrderedDict([('page_id', 0), ('line_id', 0), ('paragraph_type', 'root'), ('other_fields', {})])), ...

Manager allows to run workflow (see Workflow) for a file of any format supported by dedoc (see Supported documents formats and the reader’s output). One can also make a custom config and manager_config (parameters of the manager constructor) for more flexible usage of the library.
